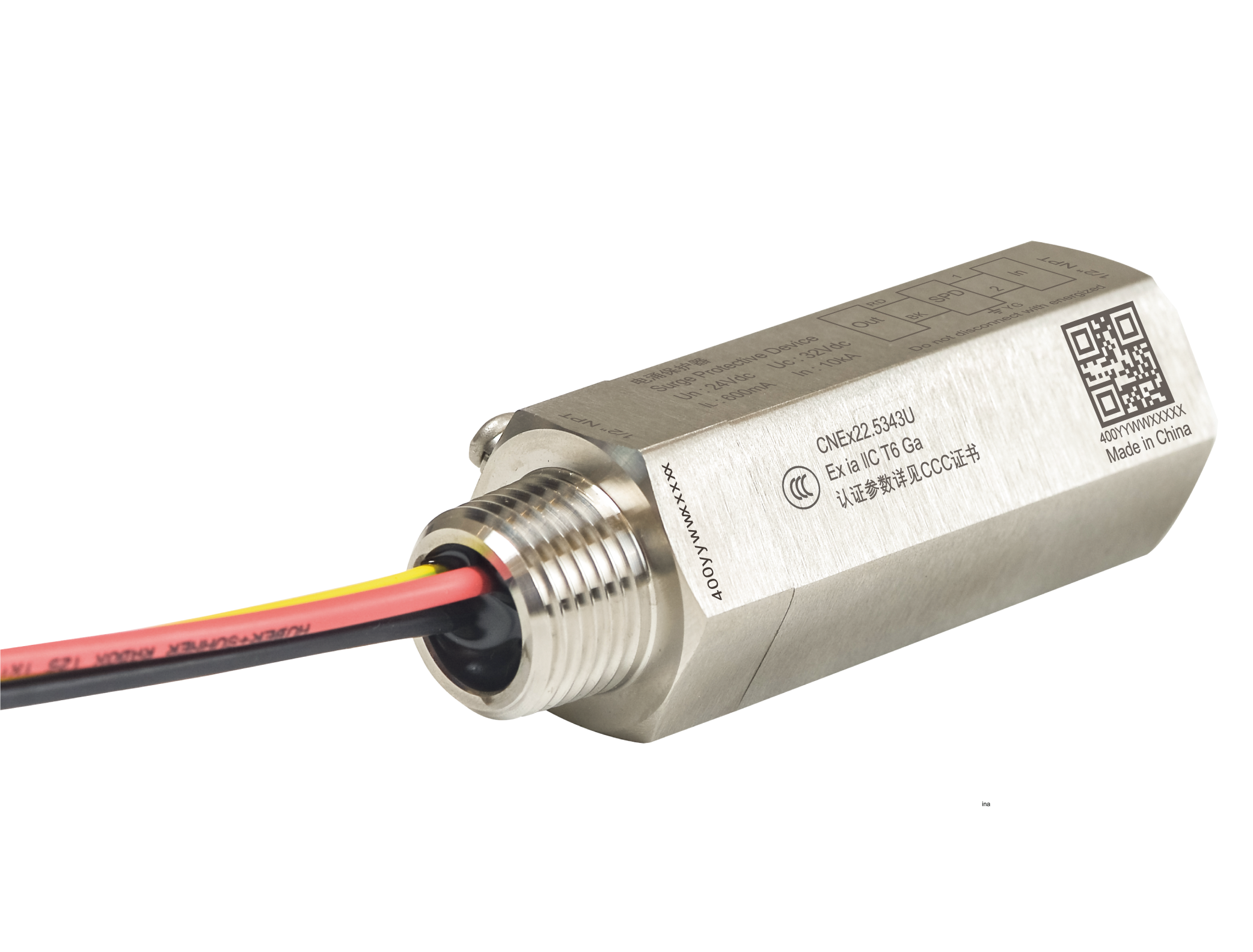

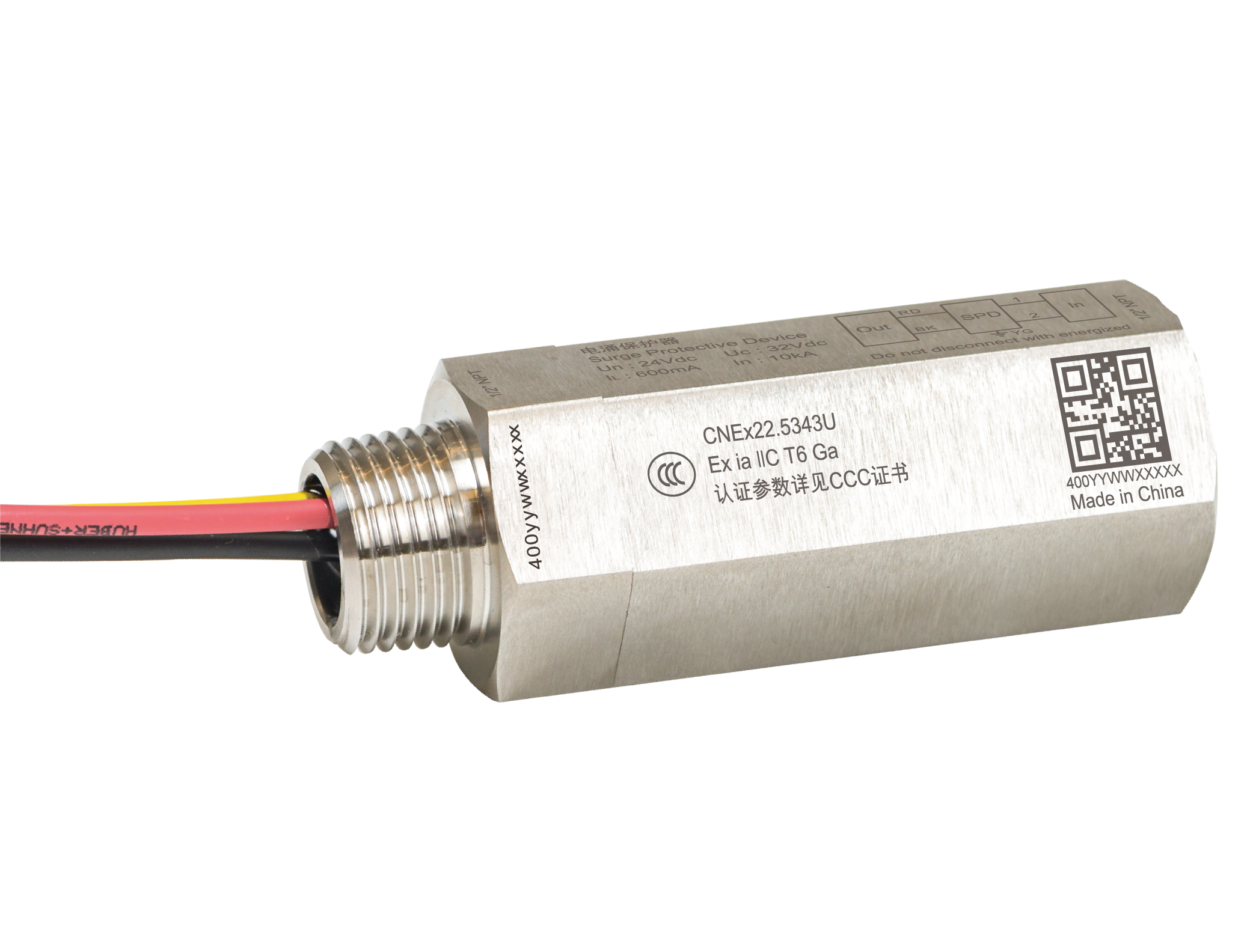

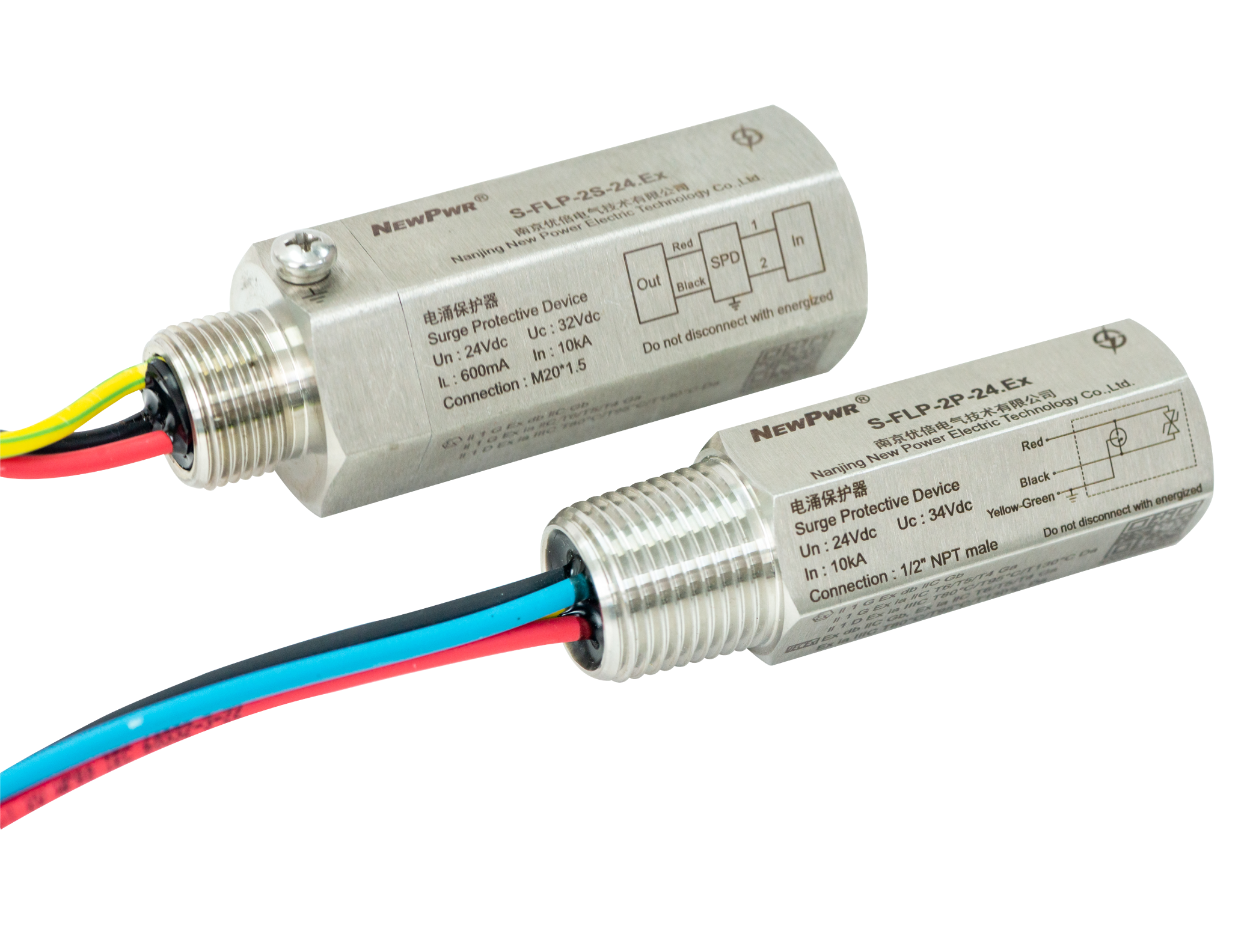

S-FLP-2S-24.Ex

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2-wire pressure transmitter, valve positioner, electrical converter, flowmeter, solenoid valve and RS485 ect.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Wire system

Thread specification

Connection mode

Ex

Share
S-FLP-2S-24.Ex

¡¾Core technology¡¿



¡¾Technical data¡¿ General parameters Lightning parameters Operating conditions Shell material ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
General parameters
Voltage Un 24 V
Max. continuous voltage Uc (DC) 32 V
Max. continuous voltage Uc (AC) 22.5 V
Nominal current IL 600 mA
Series impedance 1.8 ¦¸
Response time Ta £¼ 1 ns
Bandwidth FG (100 ¦¸ resistance) 10 MHz
Lightning parameters
Impulse current Iimp (10/350 ¦Ìs) 2.5 kA
Total discharge current Imax (8/20 ¦Ìs, C2) 20 kA
Discharge current per path In (8/20 ¦Ìs, C2) 10 kA
Voltage protection Up (8/20 ¦Ìs, C2) L ¨C L ¡Ü 60 V/ L ¨C PE ¡Ü 650 V
Operating conditions
Operating temperature -40 ¡æ ~ +80 ¡æ
Shell material
Material 304/316 stainless steel or other
Flame retardant grade (UL94) V0
Protection degree IP67
Mechanical specifications
Installtion Series form structure
Grounding mode Earthing lines or earthing screw on the shell
Output wire size 1.5 mm?, length 250 mm, Multiple lines to soft or hard, wear-resistance
Thread size(match) M20¡Á1.5, 1/2" NPT, 3/4" NPT etc. (Pin / box thread)
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CNEX, SIL, CE, FCC, CCC, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
¦ËS (1 FIT=10-9/h) 5.21 FIT
¦ËDU (1 FIT=10-9/h) 0.2 FIT
¦ËDD (1 FIT=10-9/h) 0 FIT
¦ËTOTAL (1 FIT=10-9/h) 5.41 FIT
SFF 96.3%
PFDavg(T1=1Y) 8.78E-07
PFH 2.00E-10 1/h
Intrinsically safe circuit certification Ex ia ¢òC T6 Ga
Ui 30 V
Ii 50 mA
Pi 375 mW
Ci 0 ¦ÌF
Li 0 mH
