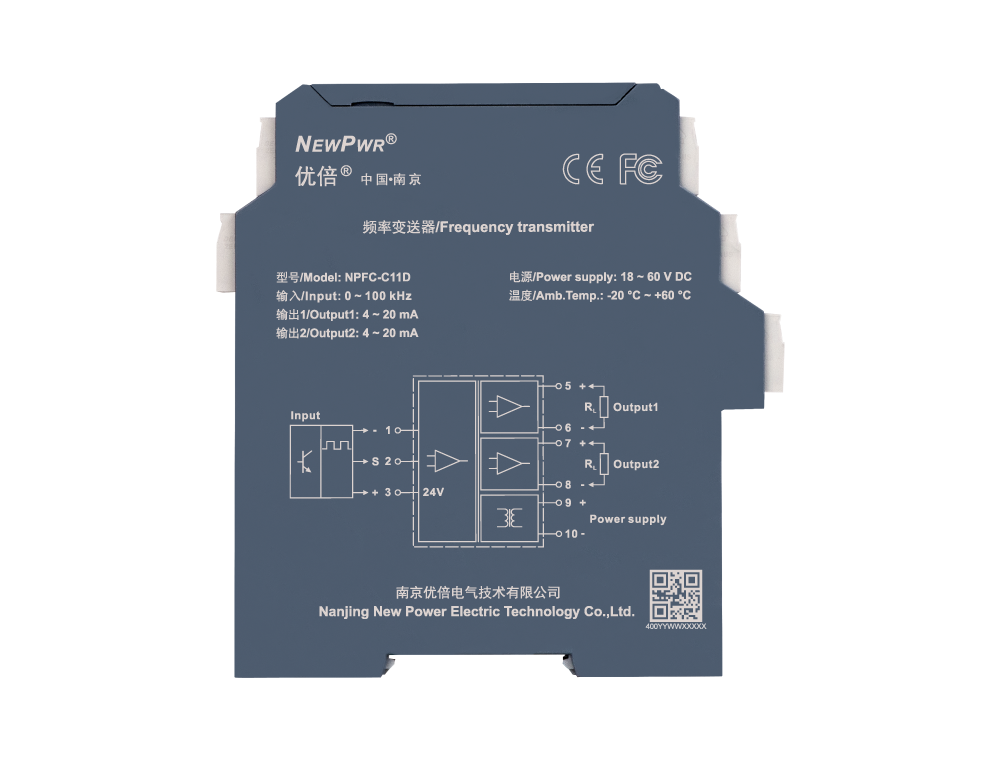

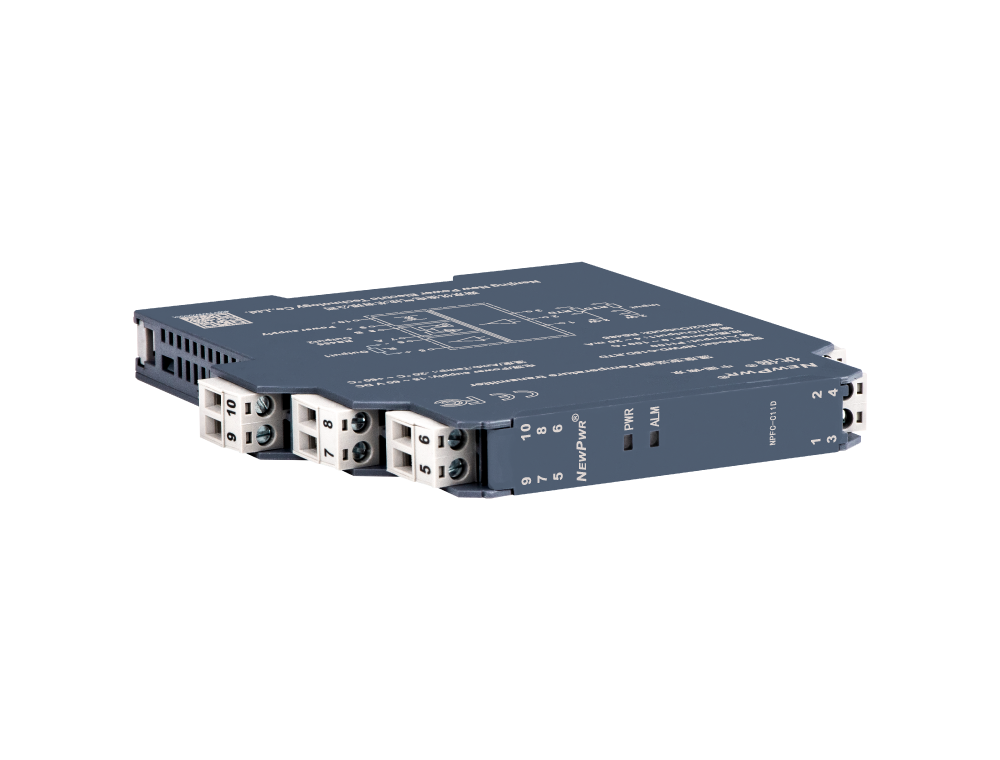

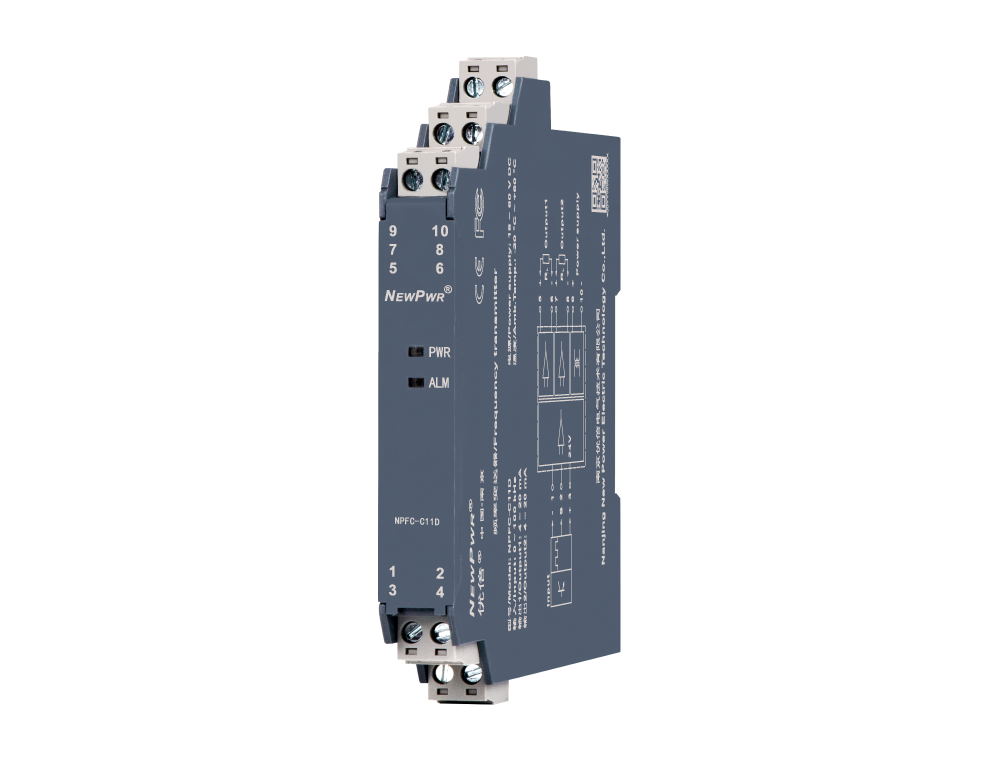

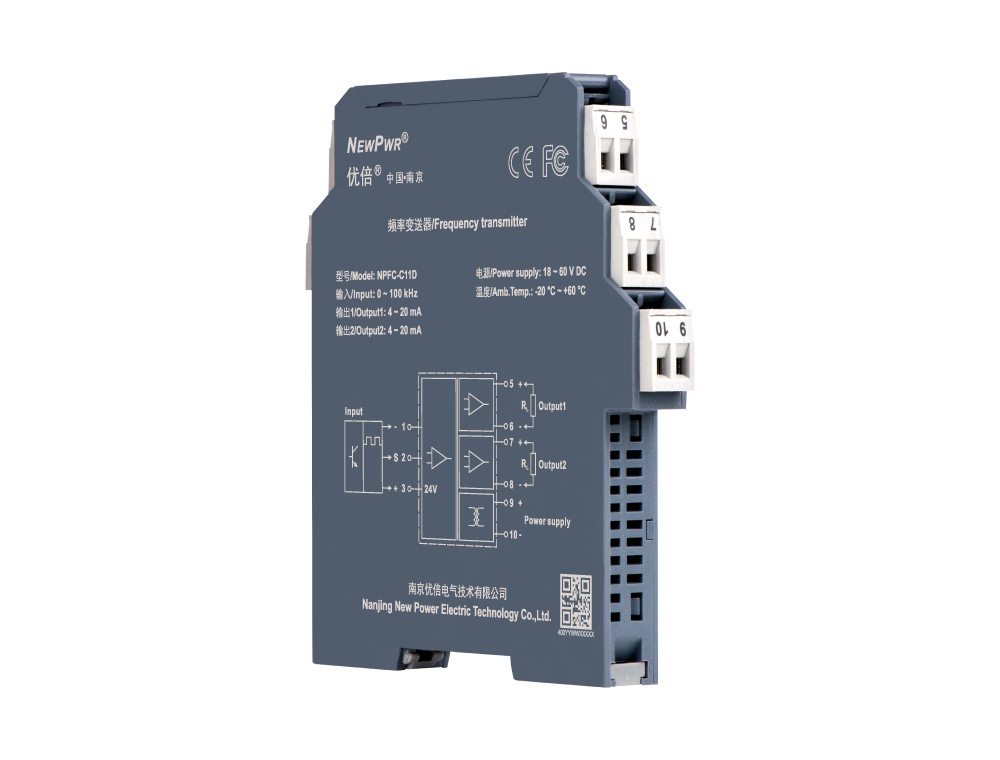

NPFC-C11D
【Core technology】
【Installation and disposal】
Installation Disposal
| Power supply | 18 ~ 60 V DC |
| Input signal | 0.1Hz ~ 100kHz |
| Pulse width | ≥ 5 μs |
| Input impedance | ≥ 10 kΩ |
| Switching trigger point | Low level: 0V ~ 2V, High level: 4V ~ 30V |
| Distribution voltage | 12 V DC, ≥ 11 V at 20 mA; 24 V DC, ≥ 22 V at 20 mA |
| Output signal | 4 ~ 20 mA |
| Load resistance | RL ≤ 550 Ω |
| Accuracy | 0.1 %F.S. |
| Temperature drift | 30 ppm/℃ |
| Response time | ≤ 500 ms |
| Power dissipation | 1.3 W |
| Electromagnetic compatibility | IEC 61326-3-1 |
| Dielectric strength | ≥ 1500V AC (Input /Output/Power supply) |
| Insulation resistance | ≥ 100 MΩ (Input /Output/Power supply) |
| Operation temperature | -20 ℃ ~ +60 ℃ |
| Storage temperature | -40 ℃ ~ +80 ℃ |
| Fault states | Input signal state indicator (red), it is remain bright when input over-range. it is flicker when input breakage. |
| Connection method | Screw connection |
| Dimension | 12.8mm (W) × 110mm (H) × 117mm (D) |
| Mounting type | DIN35 mm |
| Product approvals | CE, FCC |
