NPRR-C2D

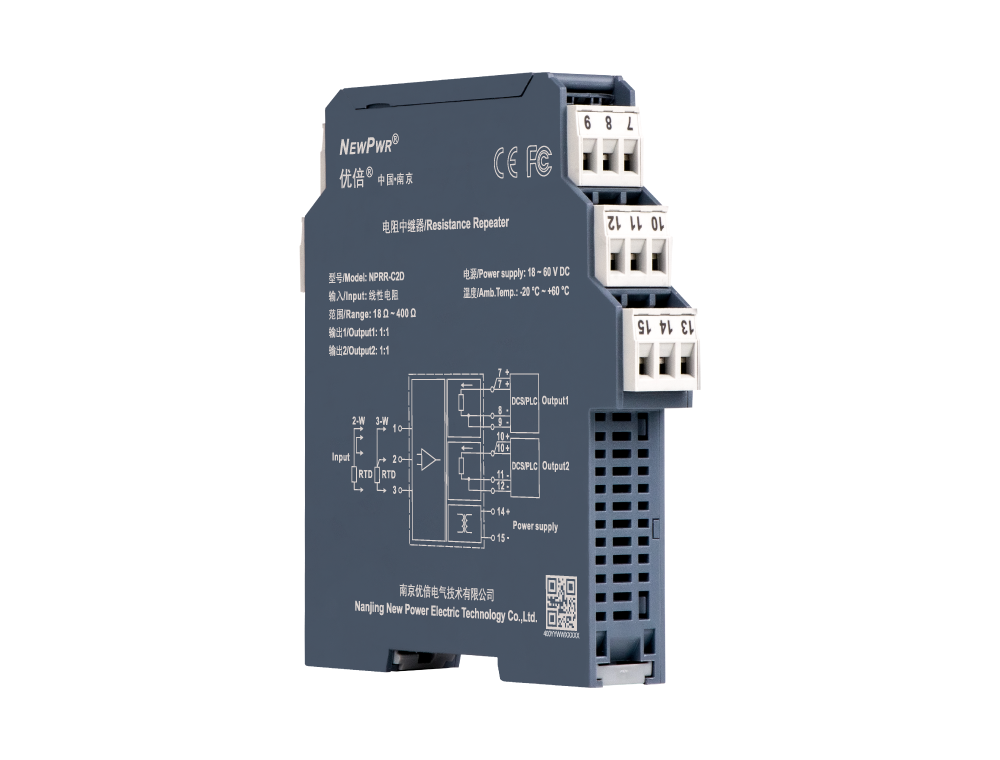

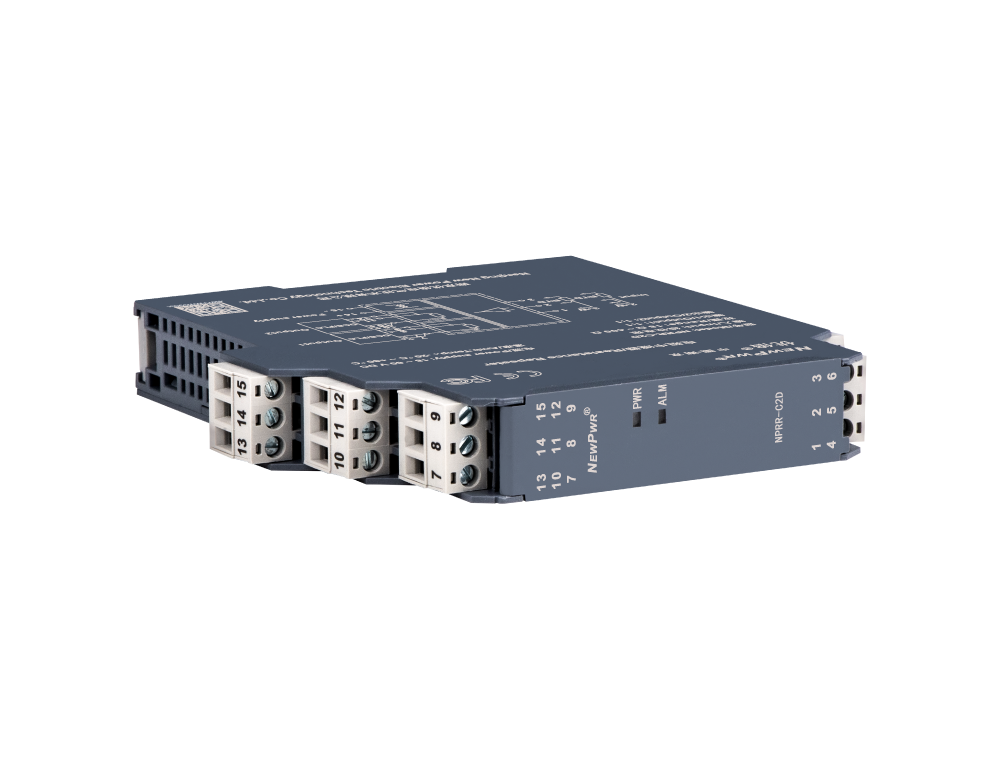

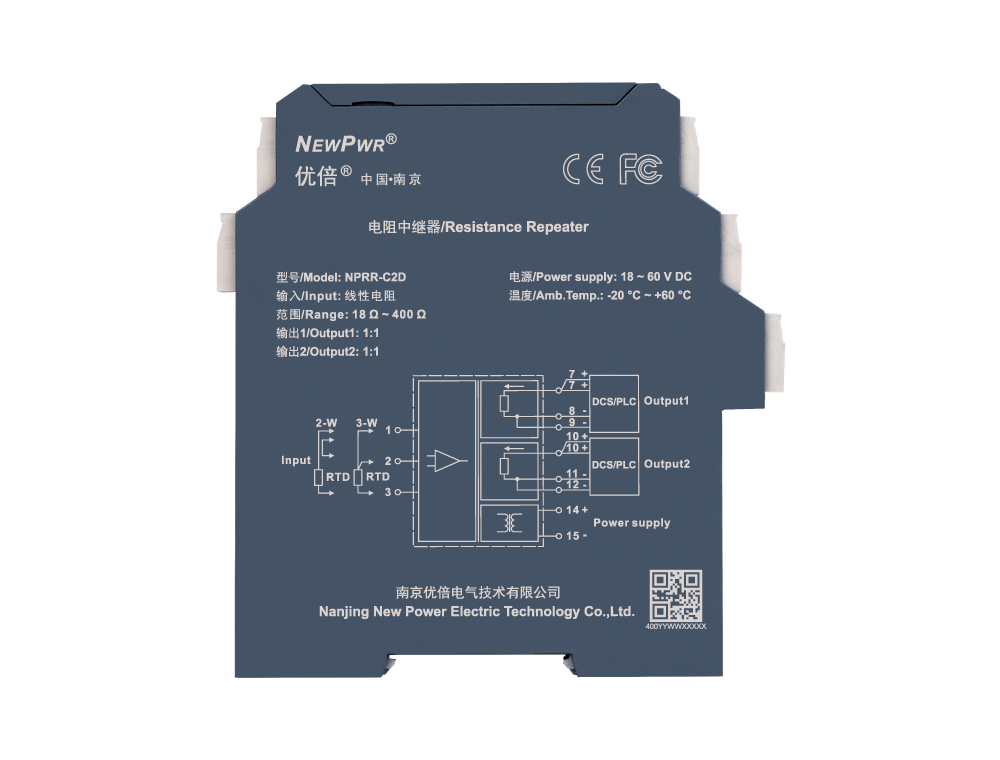

This resistance repeater converts the resistance signals to 1:1 resistance signals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other.

Input signal

Output signal

Channels

Power Supply Mode

Share
NPRR-C2D

¡¾Core technology¡¿



¡¾Installation and disposal¡¿






Installation                                               Disposal




¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal 18 ~ 400 ¦¸
Line resistance ¡Ü 20 ¦¸ per line
Output
Output signal 1 : 1
Exciting current 0.1 ~ 10 mA
Transfer characterisics
Conversion accuracy 0.5mA ~ 10mA excitation current£¬£¬£¬£¬£¬¡À 0.1%F.S. or < 0.2¦¸£¨select max£©
Temperature drift 30 ppm/¡æ
General parameters
Response time ¡Ü 500 ms
Power dissipation 0.4 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 1500V AC (Input /Output/Power supply)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
State
Output states Whatever input fault status (except breakage, breakage output about 16¦¸,breakage output2 about 0V/mA), the output follows the input within measuring range. And output1 the maximum value would not exceed the upper limit 430¦¸, output2 the maximum value would not exceed the 110% of the upper limit of the measuring range
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
