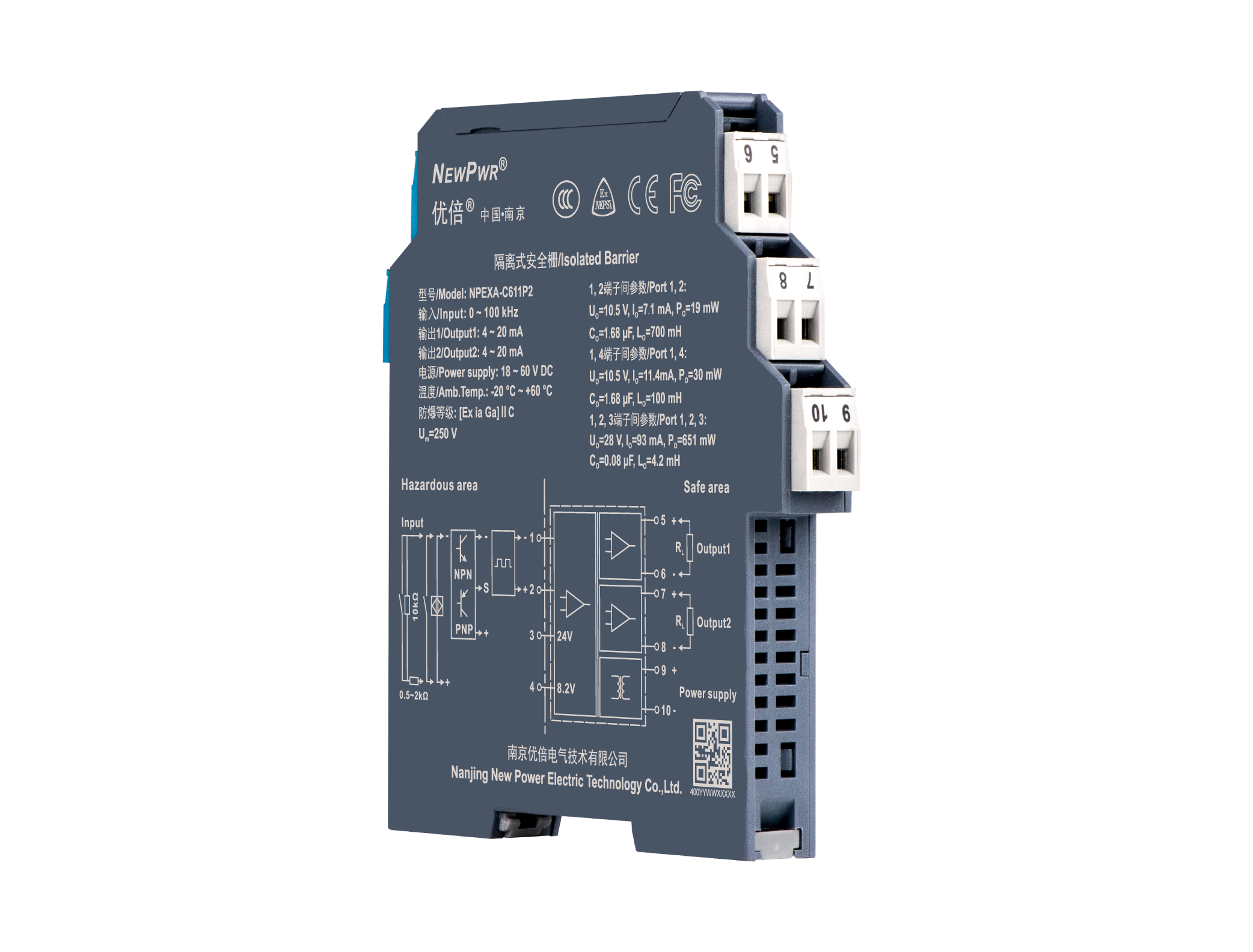

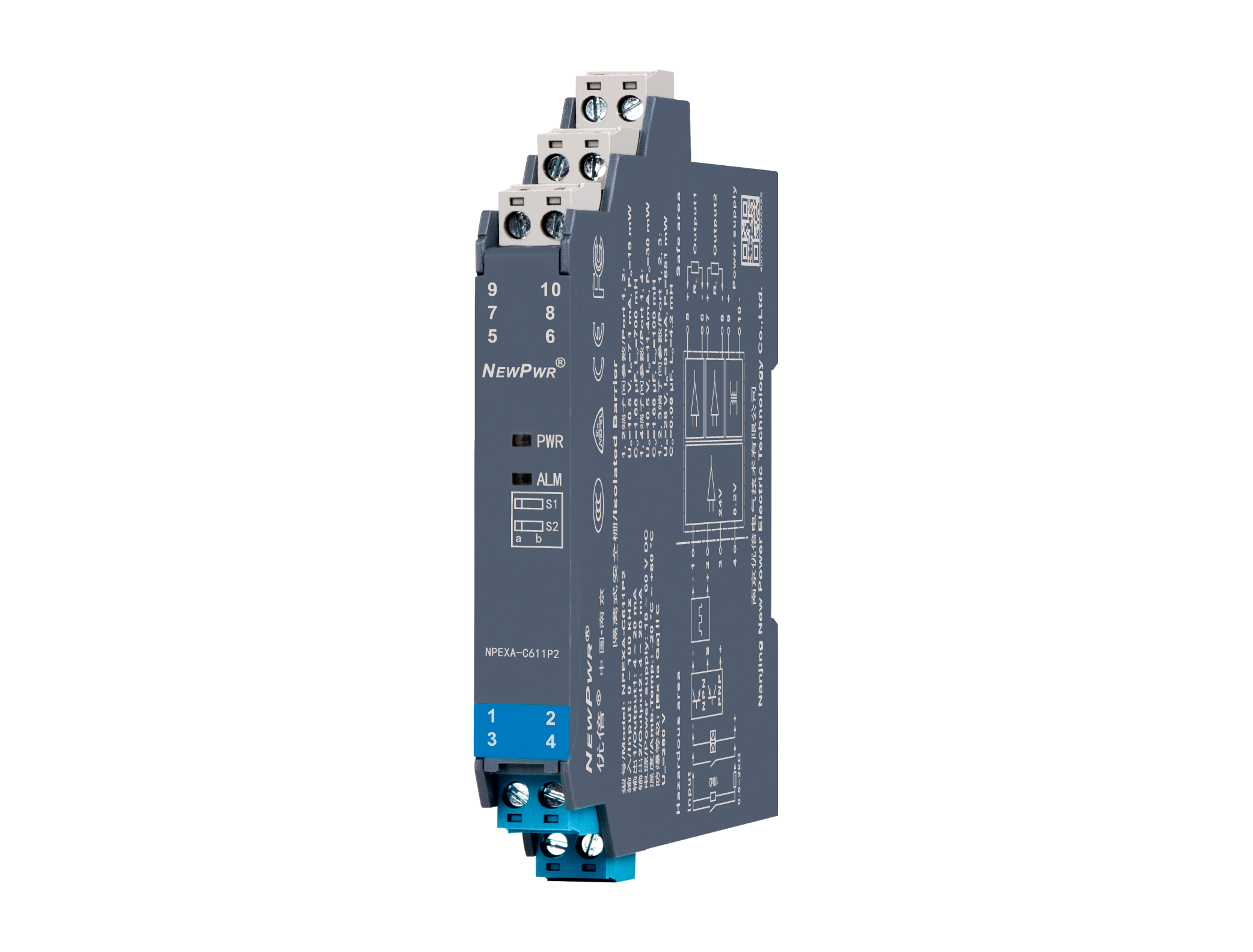

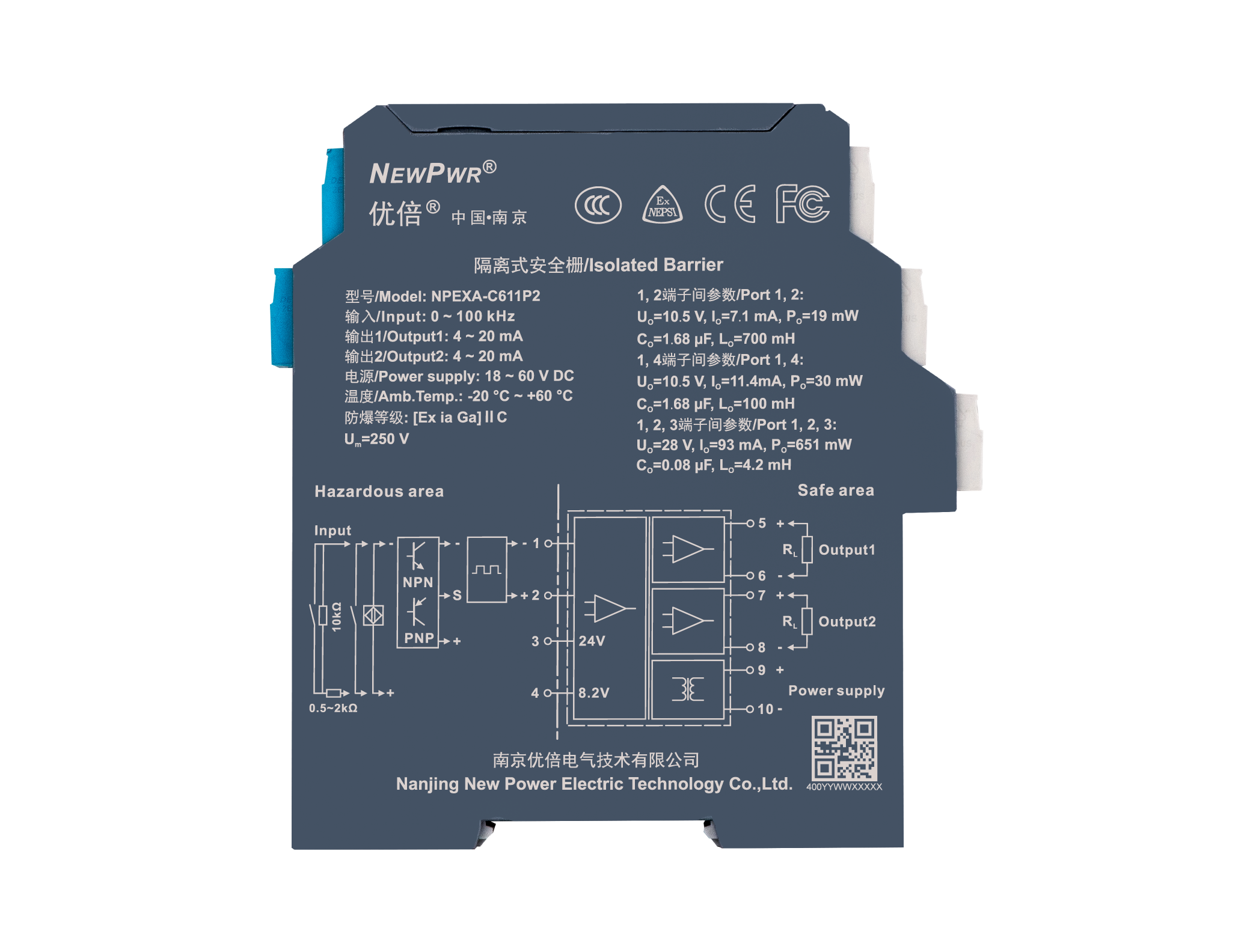

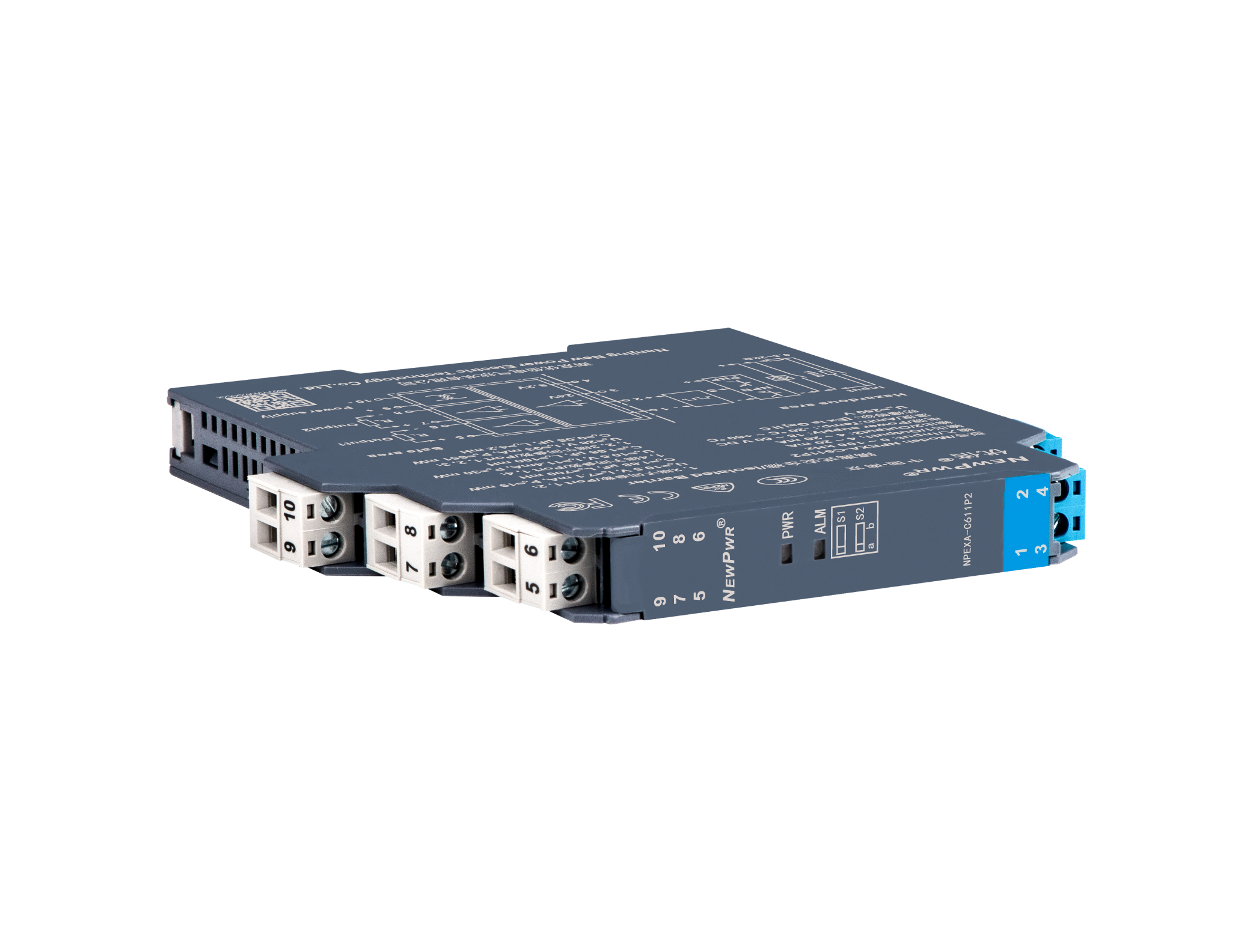

NPEXA-C611P2

Frequency input isolated barrier, it converts the frequency signals from a hazardous area into 4~20mA signals to a safe area by isolation. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Power Distribution

Share
NPEXA-C611P2

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






Supply
Power supply 18 ~ 60 V DC
Input
Input signal Frequency input, Min. input amplitude: 1Vp-p, Max. input voltage: 30Vp-p, frequency range: 0 ~ 100kHz, Pulse width:¡Ý 5¦Ìs; PNP/NPN input, distribution voltage: 24V, current: ¡Ü 20mA, frequency range: 0 ~ 100kHz; NAMUR input, distribution voltage: approx.8.2V, short-circuit current: approx.8mA, frequency range: 0 ~ 10kHz
Distribution voltage 24 V DC£¬£¬£¬£¬£¬£¬¡Ý16 V, when loaded with 20 mA
Output
Output signal 4 ~ 20 mA
Load resistance RL ¡Ü 550 ¦¸
Transfer characterisics
Accuracy 0.1 %F.S.
Temperature drift 30 ppm/¡æ
General parameters
Response time ¡Ü 500 ms
Power dissipation 2 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, ¢óC , T4 ~ T6
State
Fault states Input signal state indicator (red), it is remain bright when input over-range. it is flicker when input breakage.
Mechanical specifications
Dielectric strength ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side) ¡Ý 1500V AC (Power supply /non-intrinsically safe side)
Connection method Screw connection
Dimension 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga] ¢òC, [Ex ia Da] ¢óC
Um 250 V
Uo 10.5 V (Terminals 1, 2/4); 27.3 V (Terminals 1, 3)
Io 11.4 mA (Terminals 1, 2/4); 92 mA (Terminals 1, 3)
Po 30 mW (Terminals 1, 2/4); 628 mW (Terminals1, 3)
Co (¢òC) 2.3 ¦ÌF (Terminals 1, 2/4); 0.08 ¦ÌF (Terminals 1, 3)
Lo (¢òC) 100 mH (Terminals 1, 2/4); 4 mH (Terminals 1, 3)
