NPEXA-C11A2

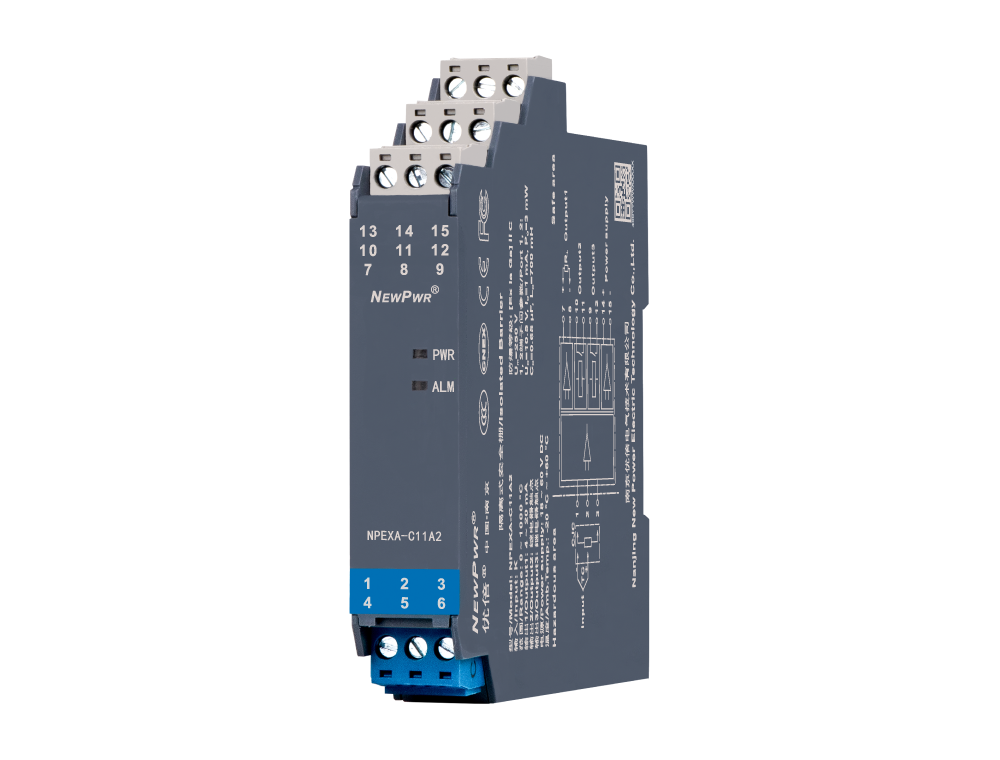

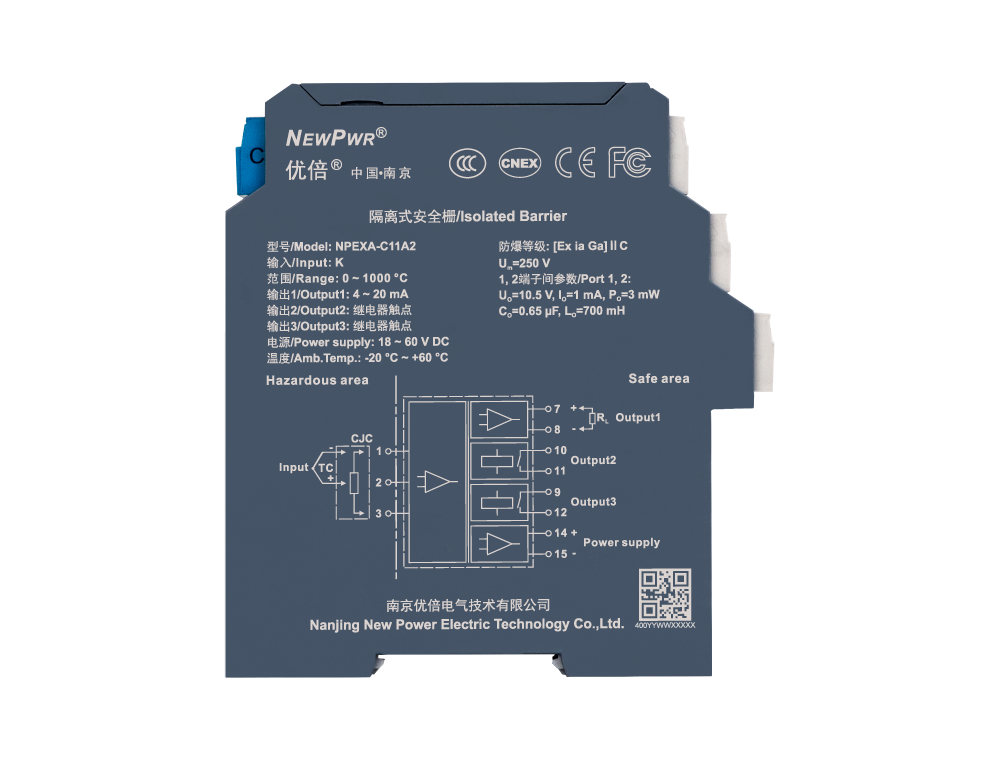

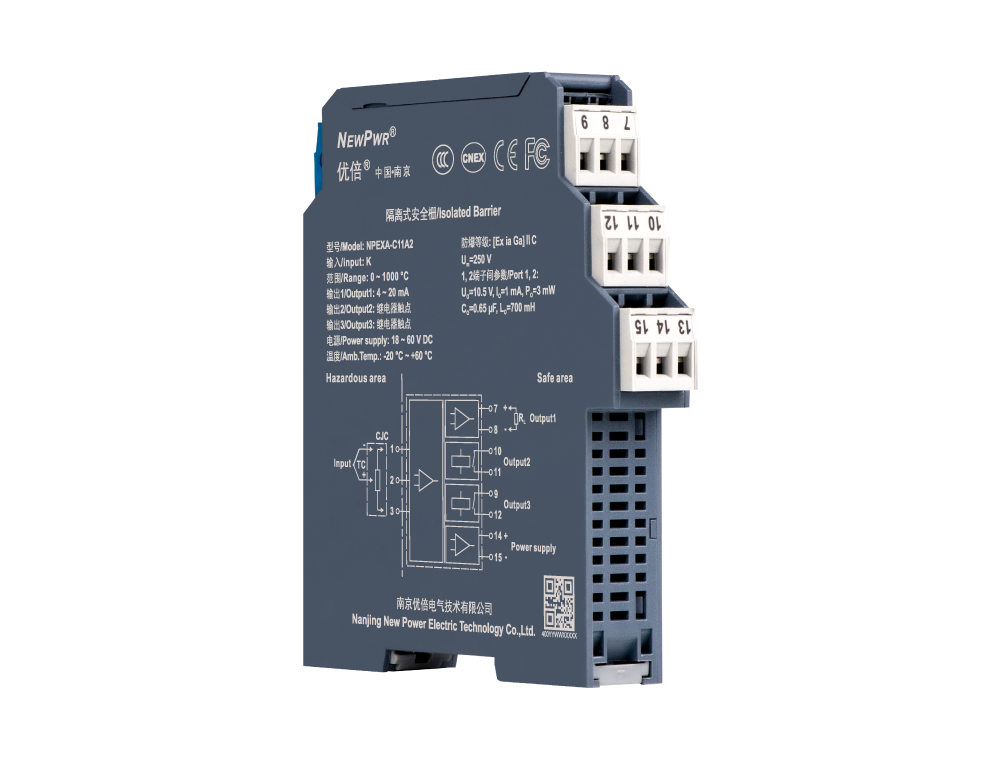

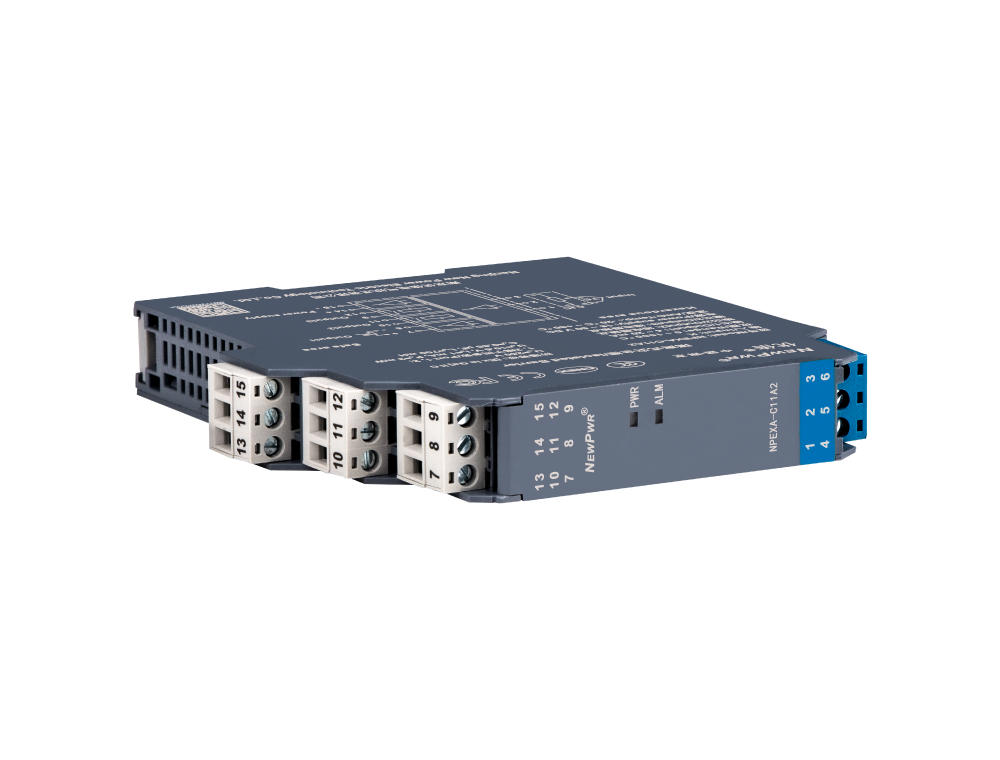

Temperature input isolated barrier, it converts the thermocouple signals from a hazardous area into 4~20mA signals to a safe area by isolation, two relay alarm outputs. It has external cold junction compensation terminals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. The self-test function is also available on this device. Calibrate the apparatus or modify parameters by using a handheld programmer.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXA-C11A2

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal K, E, S, B, J, T, R, N, etc.
Output
Output signal Output1: 4 ~ 20mA; Output2, Output3: relay contact (alarm value, hysteresis and delay time can be set)
Load resistance RL ¡Ü 550 ¦¸
Load capacity 250VAC/2A, 30VDC/2A
Transfer characterisics
Conversion accuracy-K -200 ¡æ ~ +1372 ¡æ/£¼300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-E -100 ¡æ ~ +1000 ¡æ/£¼300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-J -100 ¡æ ~ +1200 ¡æ/£¼300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-N -200 ¡æ ~ +1300 ¡æ/£¼300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-S -50 ¡æ ~ +1768 ¡æ/£¼500 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.5 ¡æ/¡Ý500 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-R -50 ¡æ ~ +1768 ¡æ/£¼500 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.5 ¡æ/¡Ý500 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-T -20 ¡æ ~ +400 ¡æ/£¼300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.3 ¡æ/¡Ý300 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Conversion accuracy-B +400 ¡æ ~ +1820 ¡æ/£¼500 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.5 ¡æ/¡Ý500 ¡æ£¬ £¬£¬£¬ £¬£¬¡À0.1 %F.S.
Temperature drift 30 ppm/¡æ
General parameters
Compensation accuracy 1¡ãC (Temperature compensation range: -20¡ãC ~ +60¡ãC)
Response time ¡Ü 500 ms
Power dissipation 1.5 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side); ¡Ý 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC£¬ £¬£¬£¬ £¬£¬¢óC, T4 ~ T6
State
Output states Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CNEX, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC, [Ex ia Da] ¢óC
Um 250 V
Uo 10.5 V (Terminals 1, 2)
Io 38 mA (Terminals 1, 2)
Po 100 mW (Terminals 1, 2)
Co (¢òC) 0.65 ¦ÌF (Terminals 1, 2)
Lo (¢òC) 14 mH (Terminals 1, 2)
