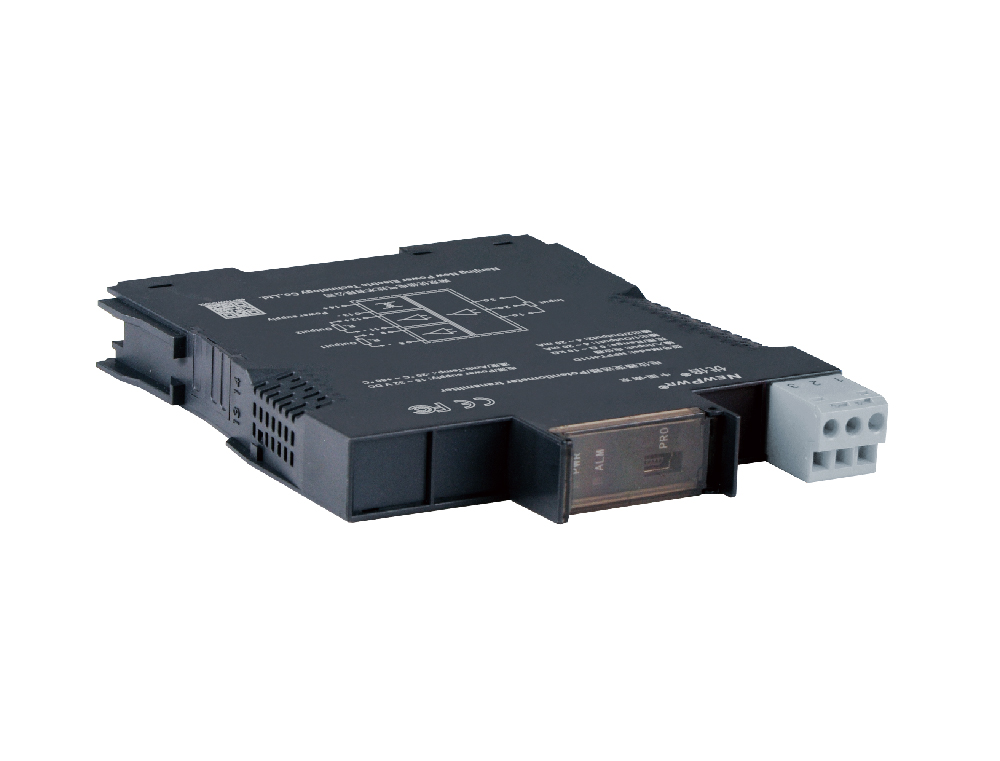

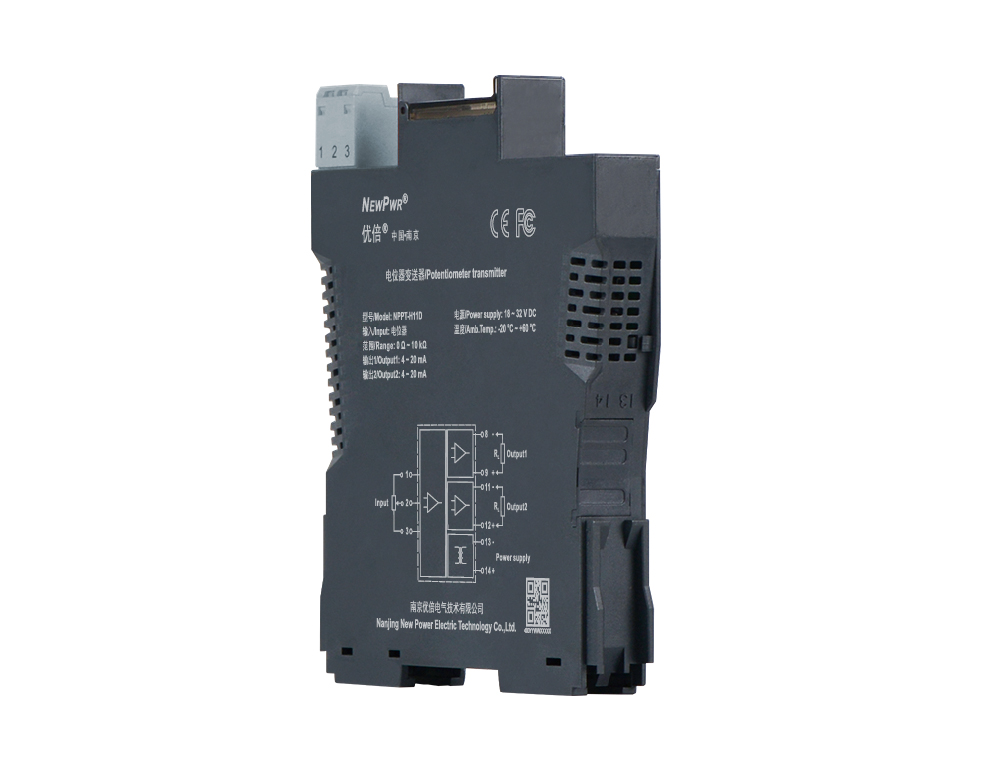

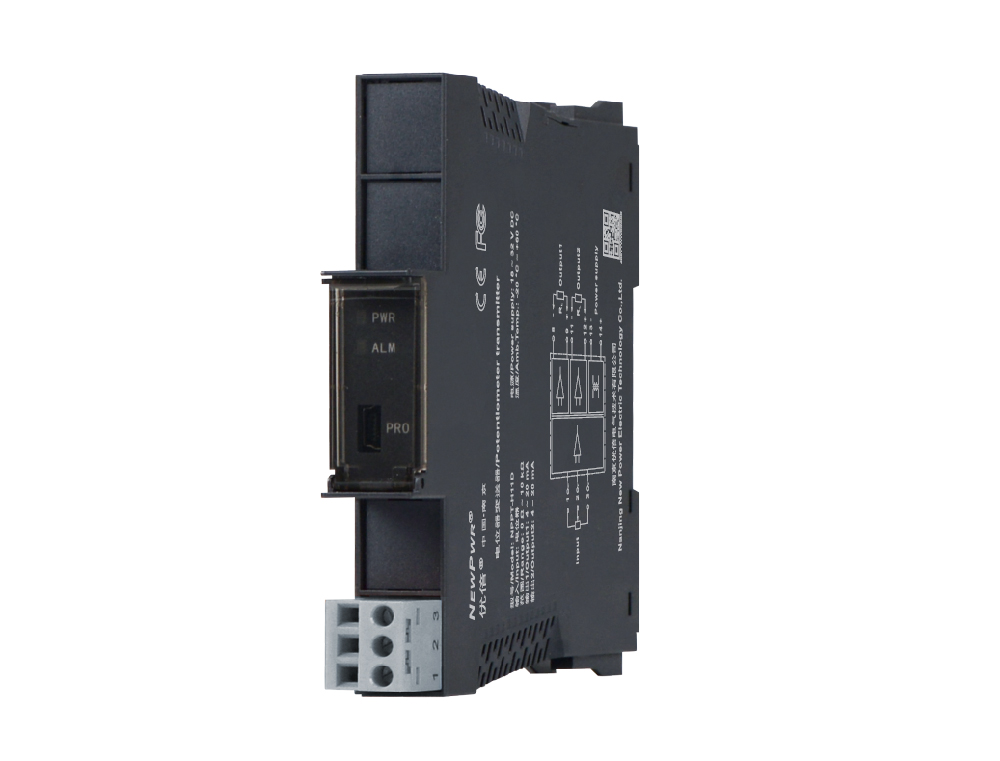

NPPT-H11D

This potentiometer transmitter converts the 3-wire potentiometer signals to 4~20mA signals. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.

Input signal

Output signal

Channels

Power Supply Mode

Share
NPPT-H11D

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Apparatus installation                            Apparatus disposal

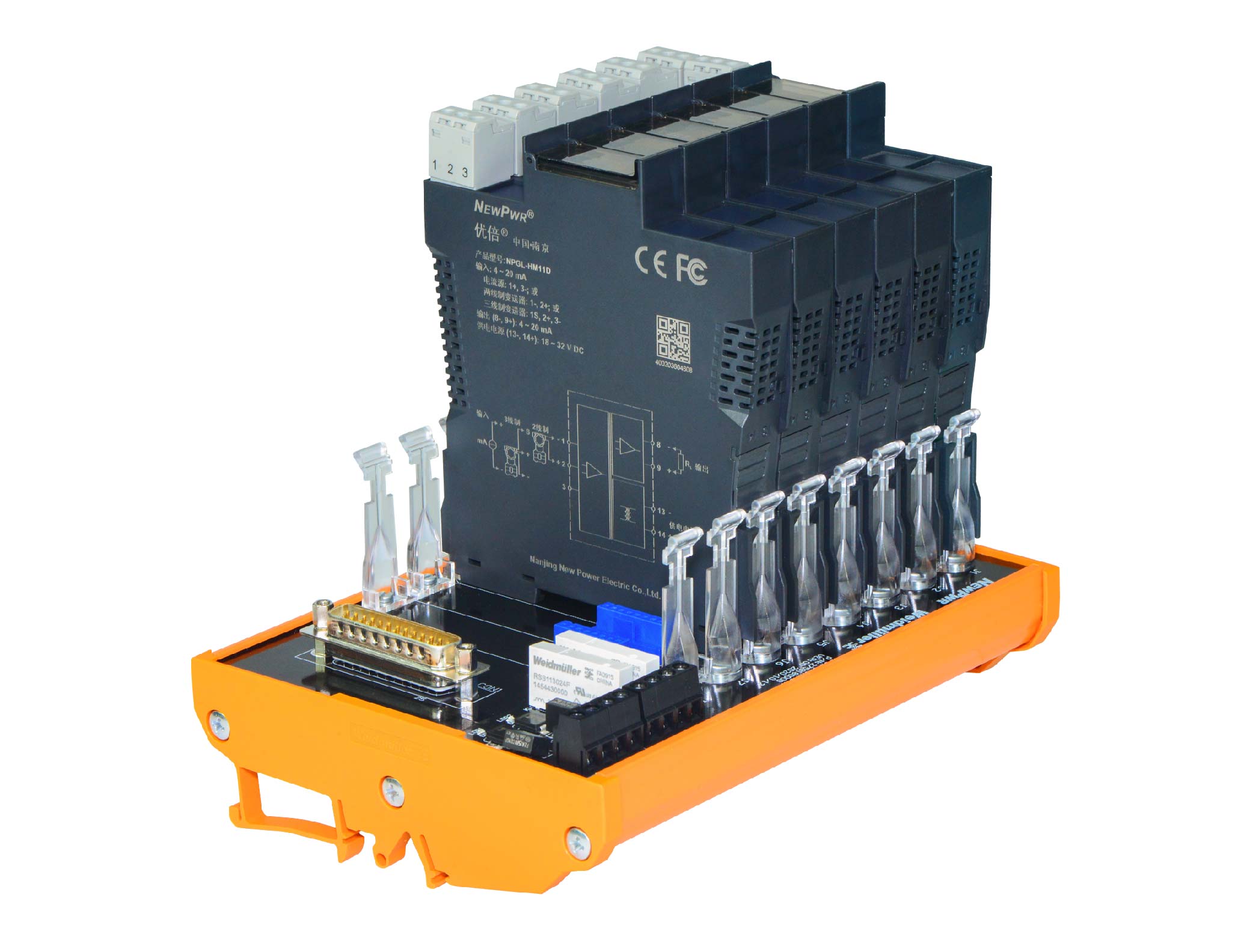

Backplan installation                                Backplan disposal





¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 32 V DC
Input
Input signal 3-wire potentiometer: 0 ¦¸ ~ 10 k¦¸
Output
Output signal 4 ~ 20 mA
Load resistance RL ¡Ü 500 ¦¸
Transfer characterisics
Accuracy ¡À 0.1 %F.S.
Temperature drift 0.01%F.S./¡æ
General parameters
Response time ¡Ü 1 s
Power dissipation 1.5 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 1500 V AC (Input /Output); ¡Ý 500 V AC (Power supply /Output)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
State
Output states Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.
Mechanical specifications
Connection method Screw connection
Dimension 15.8mm (W) ¡Á 121.6mm (H) ¡Á 104.8mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
