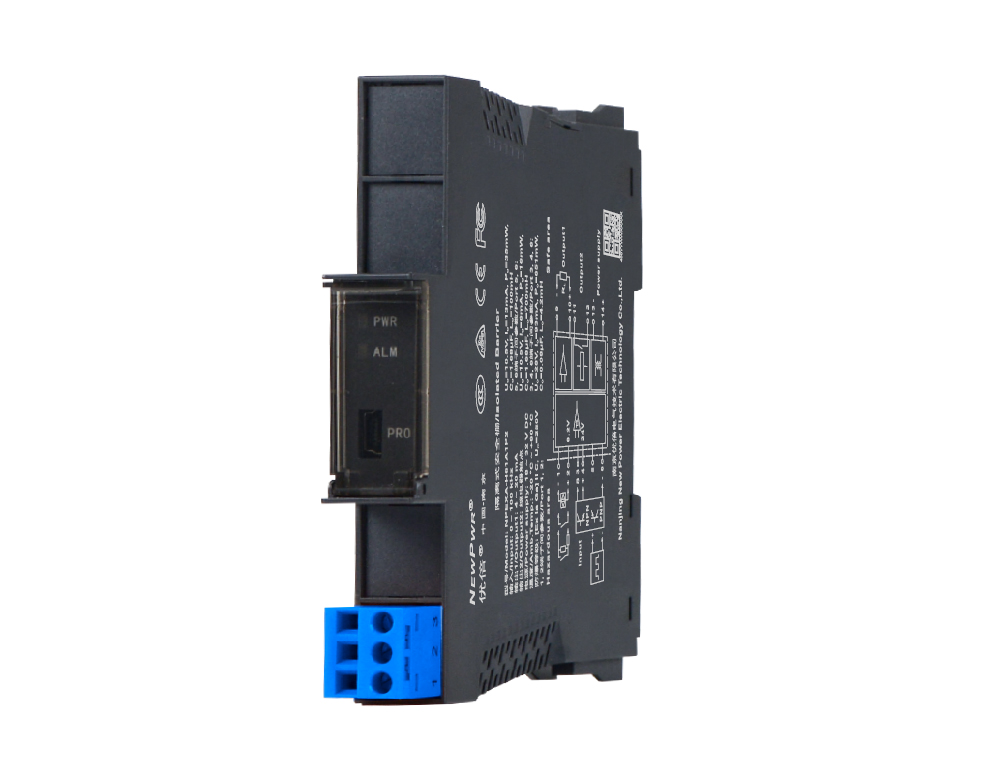

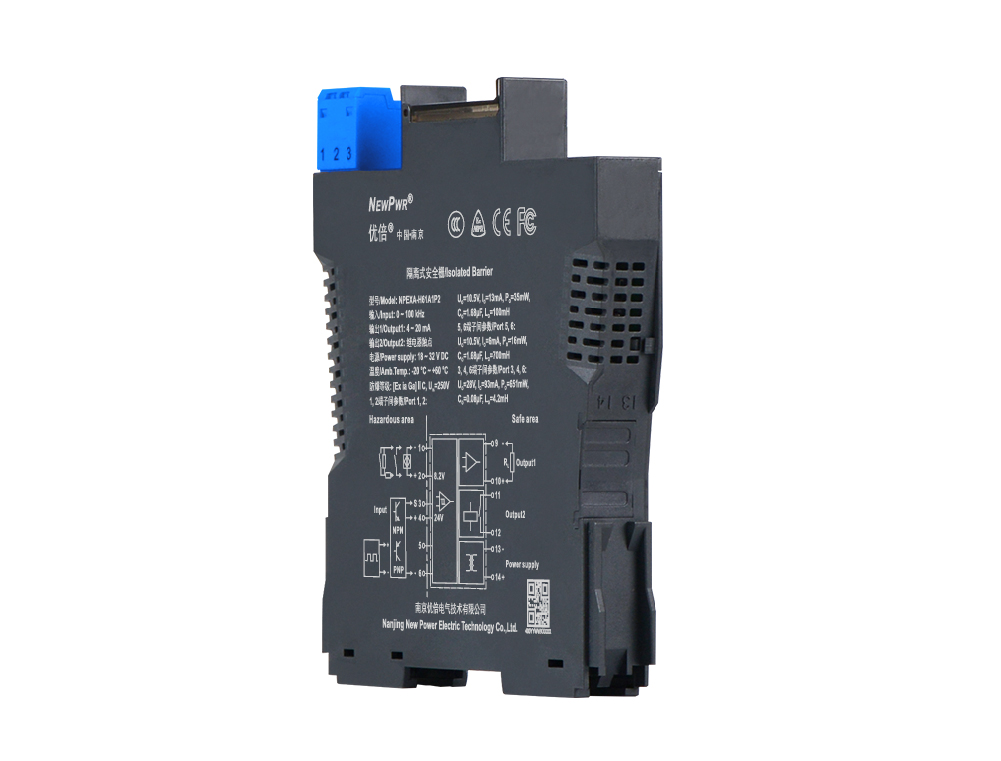

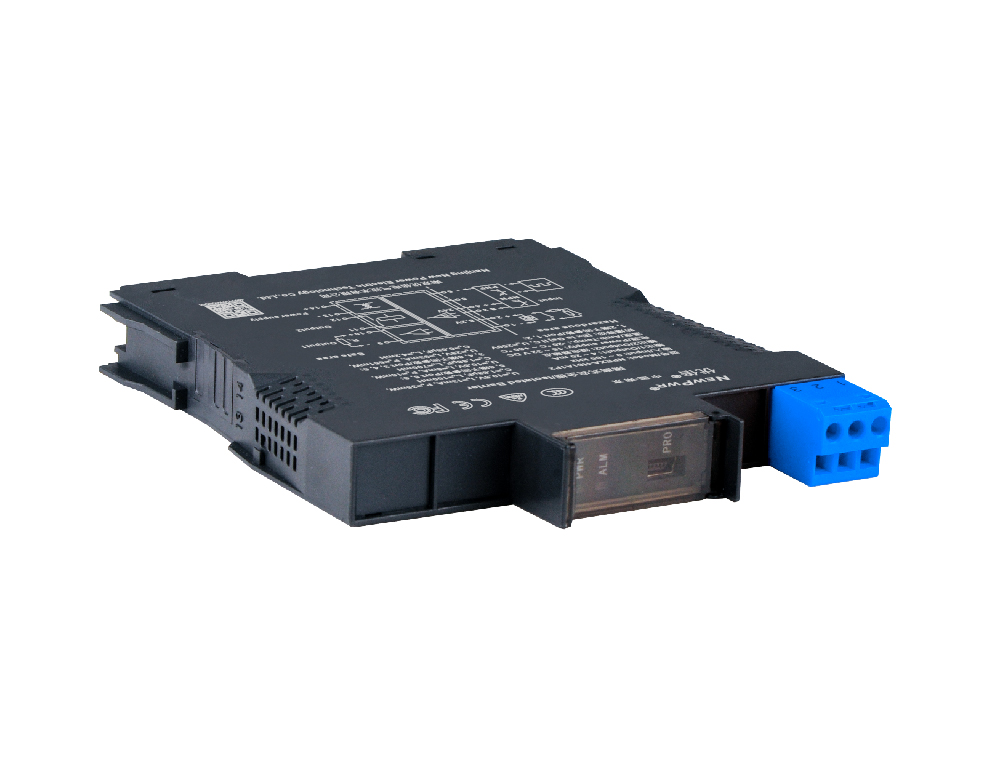

NPEXA-H61A1P2

Frequency input isolated barrier, it converts the frequency signals from a hazardous area into 4~20mA signals to a safe area by isolation, a relay alarm output. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Power Distribution

Share
NPEXA-H61A1P2

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Apparatus installation                            Apparatus disposal

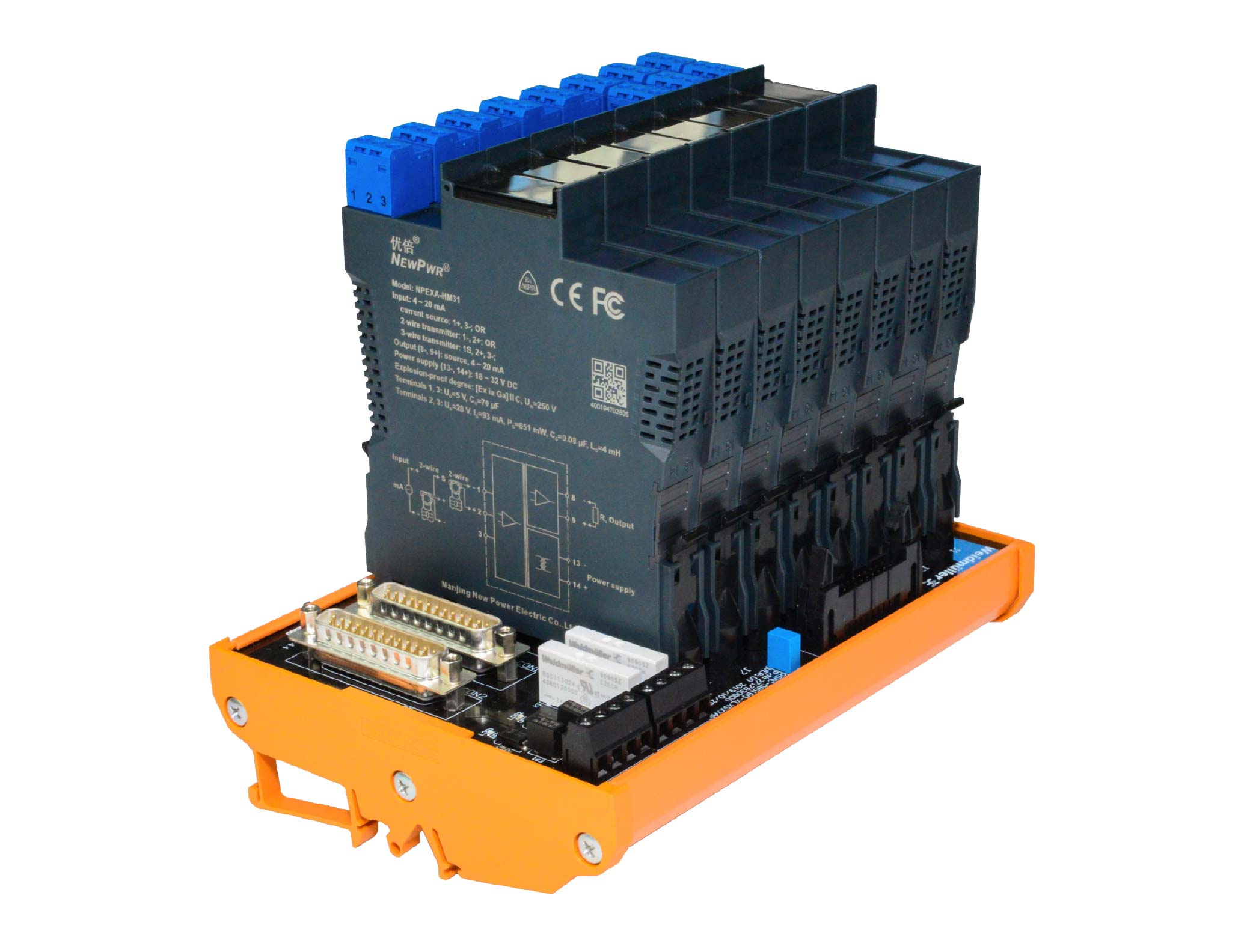

Backplan installation                                Backplan disposal




¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 32 V DC
Input
Input signal frequency input, Max. input voltage: 30V, Min. input amplitude: 2V, frequency range: 0 ~ 100kHz; PNP/NPN input, distribution voltage: 24V, current: ¡Ü 20mA, frequency range: 0 ~ 10kHz; NAMUR input, distribution voltage: approx.8.2V, short-circuit current: approx.8mA, frequency range: 0 ~ 10kHz
Output
Output signal Output1: 4 ~ 20 mA; Output2: relay contact
Load resistance Output1: RL ¡Ü 500 ¦¸; Output2: 0.5A/35V DC
Transfer characterisics
Accuracy ¡À 0.1 %F.S.
Temperature drift 1 ¦ÌA/¡æ
General parameters
Start delay time 0 ~ 99 s When the output relay is set to the mode with underspeed alarm function, after the instrument is powered on, the output relay will not generate an alarm output signal due to the input signal underspeed within the startup delay time. Alarm setting: 0 ~ 9999Hz (Customization required for frequencies above 9999)
Response time ¡Ü 500 ms
Power dissipation 1.8 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 2500V AC (intrinsically safe side / non-intrinsically safe side); ¡Ý 500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, T4 ~ T6
State
Fault states Input signal state indicator (red), it is remain bright when input over-range. it is flicker when input breakage.
Mechanical specifications
Connection method Screw connection
Dimension 15.8mm (W) ¡Á 121.6mm (H) ¡Á 104.8mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC
Um 250 V
Uo 10.5 V (Terminals 1, 2); 10.5 V (Terminals 5, 6); 28 V (Terminals 3, 4, 6)
Io 13 mA (Terminals 1, 2); 6 mA (Terminals 5, 6); 93 mA (Terminals 3, 4, 6)
Po 35 mW (Terminals 1, 2); 16 mW (Terminals 5, 6); 651 mW (Terminals 3, 4, 6)
Co 1.68 ¦ÌF (Terminals 1, 2); 1.68 ¦ÌF (Terminals 5, 6); 0.08 ¦ÌF (Terminals 3, 4, 6)
Lo 100 mH (Terminals 1, 2); 700 mH (Terminals 5, 6); 4.2 mH (Terminals 3, 4, 6)
